Novus所提供的复合软管系统管体均在荷兰驰名的专业复合软管出产商Gutteling BV工厂出产， 管体均获得ABS,BV,DNV,LR,NK,KR,RMRS等船级社等第三方检测机构的大局认可。
NCT复合软管由
内加强钢圈（A）
表加强钢圈（E）
和输送介质兼容的接触介质层（B）
密封加强层（C）
以及能抗臭氧耐磨的彩色有机纤维表套（D）组成的柔性管体
表套有多种色彩以分辨分歧的软管类型，甚至能够凭据客户的要求订造色彩。
必要相识配置或者选型，请联系我司技术团队。
我们限于在常态介质输送场所同
与金属软管和橡胶软管优势比力：
所供的型号：
Novus Oiltrans NCT-810系列复合软管专为输送碳氢化合物、溶剂、100%芳香烃类化合物等化学介质所设计。
The Novus Oiltrans NCT-810 series composite hoses are designed for conveying hydrocarbons, solvents, 100% aromatics etc.
尺寸型号：
Novus Chemtrans NCT-820系列复合软管专为输送对聚丙烯内衬以及聚丙烯涂层内钢圈没有侵蚀的化学品所设计。
The Novus Chemtrans NCT-820 series composite hoses are designed for those chemicals which do not affect the PP lining and PP coated steel inner wire.
尺寸型号：
Novus Chemtrans NCT-821系列复合软管专为输送对聚丙烯内衬以及不锈钢内钢圈没有侵蚀的化学品所设计。
The Novus Chemtrans NCT-821 series composite hoses are designed for those chemicals which do not affect the PP lining and stainless steel inner wire.
尺寸型号：
Novus Chemtrans NCT-822系列复合软管专为输送绝大无数的化学品、氯氢化合物以及酸类等对PTFE内衬以及不锈钢内钢圈没有侵蚀的化学介质所设计。
The Novus Chemtrans NCT-822 series composite hoses are designed for a wide range of chemicals, chlorinated hydrocarbons and acids which do not affect the lining and the stainless steel inner wire.
尺寸型号：
Novus Vaportrans NCT-830系列复合软管专为抽取回收油轮、化学品船、驳船以及船埠液体接管站的化学品、碳氢化合物的蒸气所设计，也能够被用在油罐、槽罐车内的化学品、油类蒸气回收，以实现节能减排。
The Novus Vaportrans NCT-830 series composite hoses are designed specifically for chemicals as well as for hydrocarbons vapor recovery service on ships,barges and in marine terminals. It can also be used to recover vapors in tank and railcar application, to reduce the emission and the pollution of environment.
尺寸型号：
Novus Subtrans NCT-840 系列复合软管专为软管浸没在某化学介质的同时实现介质输送场所所设计，此时软管内表表表所接触的化学介质必须对软管的内表表层、不锈钢内钢圈、软管表套以及表加强圈没有侵蚀作用。
The Novus Subtrans NCT-840series composite hoses are designed for submersible use in chemicals which do not affect the lining and cover and the stainlesssteel inner and outer wire.
尺寸型号：
Novus LPGtrans NCT-850系列复合软管专为在船舶、驳船、轮船船埠接管站等场所输送低温至-50℃的液态化学介质所设计, 能输送蕴含以下种类的化学介质。
The Novus LPGtrans NCT-850 series composite hoses are special designed for use with fully refrigerated conveyable fluids down to -50 ℃ on ships,barges and in marine terminals. This application is including the followings mediums：Ammonia, Acetaldehyde, Butadiene, Butane, Propane, Butylene,Dimethylamide, Ethylamine, Ethyl Chloride, Methyl Acethylene, Methyl Bromide Propane, Propylene, Vinyl Chloride, Refrigerant Gases.
尺寸型号：
Novus LNGtrans NCT-860系列复合软管专为在槽罐车、厂区、船到储运码优等场所输送温度低至-196℃液态LNG所设计。
The Novus LNGtrans series composite hoses are especially designed for use with fully refrigerated conveying fluids down to -196℃ such as LNG in rail, railcars,inplant, ship to shore etc.
尺寸型号：
。Novus BioDieseTrans生物输送软管是针对生物柴油PH值较低，凭据间歇性输送和持续输送两种工况，选择了抗侵蚀的尼龙、PTFE作为内衬 ；尼龙内衬多孔易渗水，因而在不工作时，含水量高的生物柴油就不会堆集在软管中，因而适合于间歇性工况 ；PTFE内衬致密光滑，能够预防软管吸收生物柴油，且冲刷方便，清洁后方便急剧使用于其他工况。
The Novus BioDieseltrans NCT870 series composite hoses are designed specially for conveying continuous Bio-Diesel products. The hose is lined with material which will notbe effected by the Esterified vegetable oils, which are on ingredient of Bio-Diesel products.There are two different hoses depending on application: Multi-Bio Green lined with nylonfor intermittent service only. Nylon is porous and product can not be left in the hose while not in service. Multi-Bio Green lined with PTFE for an indefinite service life, the PTFE liner prevents the hose against any absorption of the products. The hose is easy to flush and to clean and therefore quickly reusable for other applications.
尺寸型号：

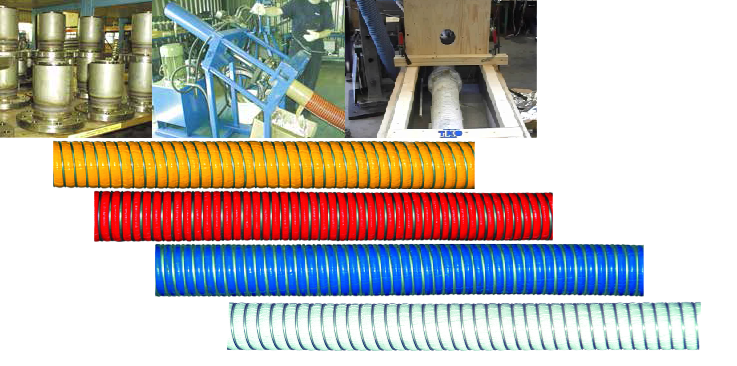

Novus引进全套Gutteling设备，在装配衔接复合软管和接头时，首先把软管旋转到密封胶充注的接头护套螺旋环腔内，而后利用专门的液压装置环向挤压收缩接头护套的表圈，以保障软管被安全紧固在接头护套内。这样的双沉密封工艺，确保了复合软管使用在船对船介质输送等极度恶劣的工况下，也能安全使用，预防产生软管和接头脱落而造成环境传染等沉大变乱。
Novus系列复合软管能和多种资料、分歧尺度以及多种大局的接头衔接，以满足客户现场的衔接输送要求，我们有以下资料类型能够选择：/
分歧类型资料：
